Iscar ISCAR 5603342

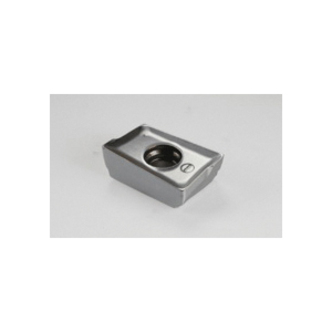

Iscar 5603342 MILL2000 Single Sided Heavy Duty Milling Insert, AXKT Insert, 1304 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
3m Axkt 1304pdr Ic908
Factory Order

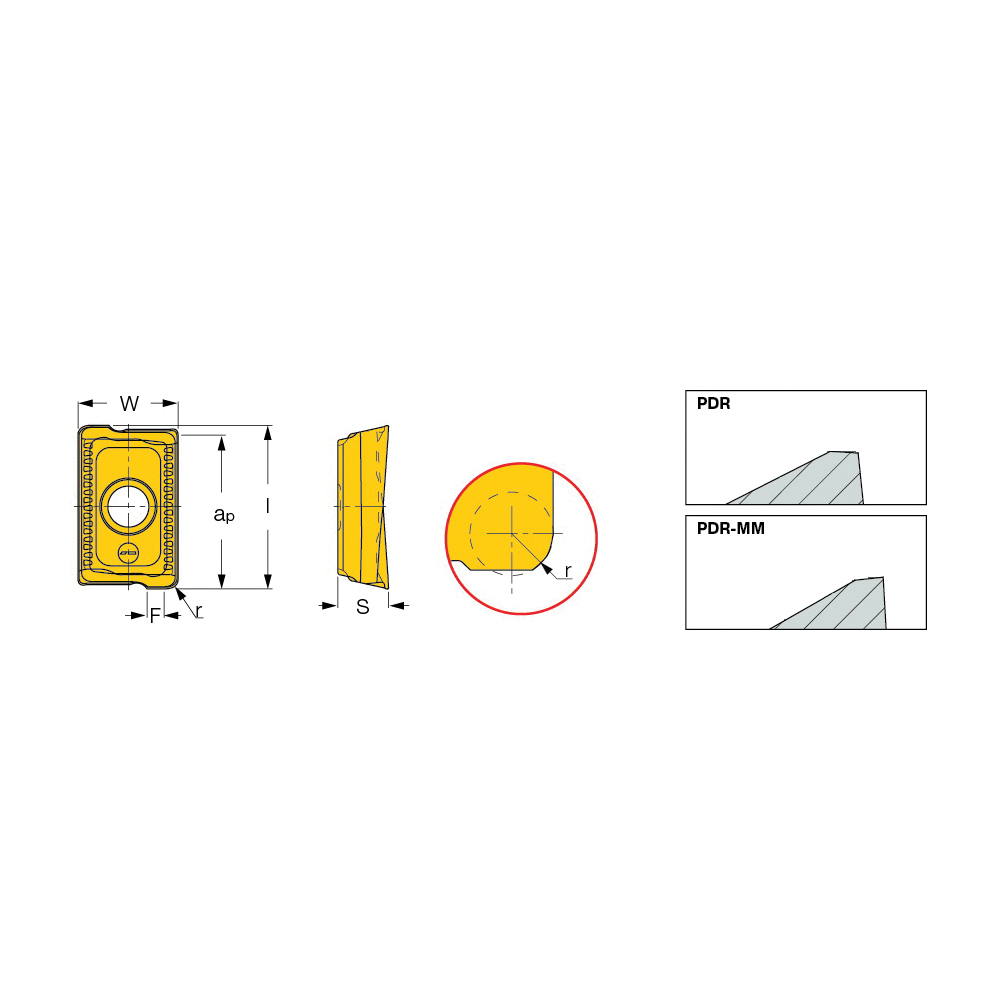

Iscar Milling Insert, Single Sided Heavy Duty, Series: MILL2000, AXKT Insert, 1304 Insert, 85 deg Parallelogram, 4.55 mm Thickness, 8.4 mm Width, 14.12 mm Length, PDR Chipbreaker, 0.6 mm Corner Radius, Positive Rake, Manufacturers Grade: IC908, ISO Code: 3M AXKT 1304PDR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- MILL2000 heavy duty design, dovetail section shape, helical cutting edge
- Enable a secure clamping and high durability in rough applications
Specifications
ApplicationCounterboring, Facing, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerPDR
Corner Radius0.6 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size1304
Insert StyleAXKT
ISO Code3M AXKT 1304PDR IC908
Length14.12 mm
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
RakePositive
SeriesMILL2000
Shape85 deg Parallelogram
Thickness4.55 mm
TypeSingle Sided Heavy Duty
Width8.4 mm
Additional Information
Country of OriginIL
