Iscar ISCAR 5603325

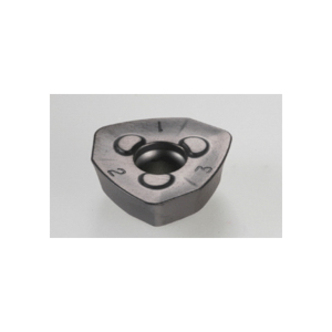

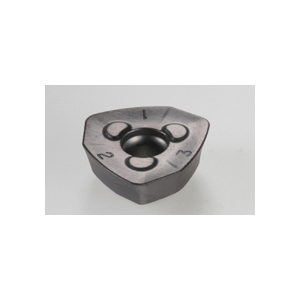

Iscar 5603325 FEEDMILL Milling Insert, WOMT Insert, 09T320 Insert, Carbide, Manufacturers Grade: IC928, 80 deg Trigon Shape, Material Grade: M, P, S
Invoice description:
Ff Womt 09t320t Ic928
Factory Order

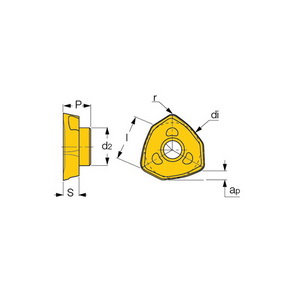

Iscar Milling Insert, Series: FEEDMILL, WOMT Insert, 09T320 Insert, 80 deg Trigon Shape, 14.5 mm Inscribed Circle, 3.95 mm Thickness, 10.6 mm Length, 2 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: FF WOMT 09T320T IC928, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Features
- Designed with a cylinder on bottom that is seated in a mating hole in the pocket
Specifications
ApplicationFacing, Fast Feed Milling, Helical Interpolation, Plunging and Recessing, Profiling, Rampdown and Side Plunging
Corner Radius2 mm
FinishPVD-TiAlN Coated
Inscribed Circle14.5 mm
Insert Size09T320
Insert StyleWOMT
ISO CodeFF WOMT 09T320T IC928
Length10.6 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesFEEDMILL
Shape80 deg Trigon
Thickness3.95 mm
