Iscar ISCAR 5603285

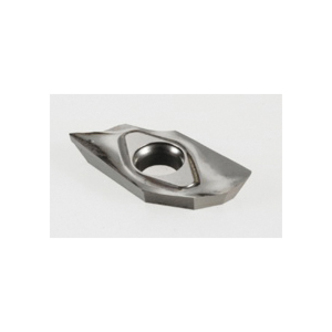

Iscar 5603285 HELIALU Single Sided Milling Insert, APCR Insert, 160504 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5603285
$46.72 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIALU, APCR Insert, 160504 Insert, 85 deg Parallelogram, 4.8 mm Thickness, 12.8 mm Width, 25.5 mm Length, P Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC28, ISO Code: HM90 APCR 160504R-P IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationFacing, Helical Interpolation, Rampdown, Shouldering, Slotting, Plunging and Recessing
ChipbreakerP
Corner Radius0.4 mm
FinishUncoated
Hand of InsertRight
Insert Size160504
Insert StyleAPCR
ISO CodeHM90 APCR 160504R-P IC28
Length25.5 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELIALU
Shape85 deg Parallelogram
Thickness4.8 mm
TypeSingle Sided
Width12.8 mm
