Iscar ISCAR 5603151

Iscar 5603151 HELIOCTO Single Sided Milling Insert, OEMT Insert, 060405 Insert, Carbide, Manufacturers Grade: IC908, Octagon Shape, Material Grade: H, K, M, P, S

Invoice description: Oemt 060405aer-76 Ic908

UNSPSC: 23242107

Manufacturer PN: 5603151

^$25.33 EA

Factory Order
Estimated to ship in 14 days

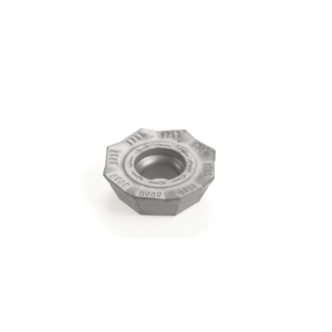

enlarge

Product Overview

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OEMT Insert, 060405 Insert, Octagon Shape, 14.27 mm Inscribed Circle, 4.74 mm Thickness, 76 Chipbreaker, 0.5 mm Corner Radius, 45 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: OEMT 060405AER-76 IC908, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer

Chipbreaker76

Corner Radius0.5 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Inscribed Circle14.27 mm

Insert Size060405

Insert StyleOEMT

ISO CodeOEMT 060405AER-76 IC908

Lead Angle45 deg

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELIOCTO

ShapeOctagon

Thickness4.74 mm

TypeSingle Sided
