Iscar ISCAR 5602966

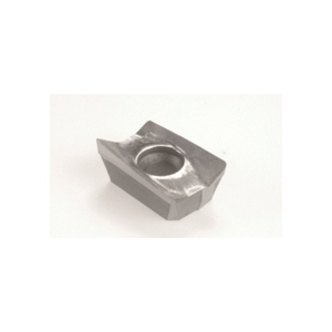

Iscar 5602966 HELI2000 Milling Insert, HM90 ADCR Insert, 1505 Insert, Carbide, Manufacturers Grade: IC28, Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5602966
$33.76 EA
Factory Order
Estimated to ship in 14 days
QTY:

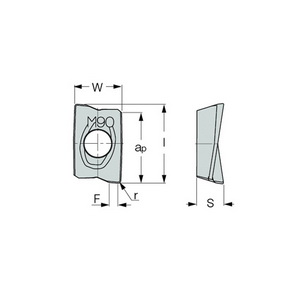

Iscar Milling Insert, Series: HELI2000, HM90 ADCR Insert, 1505 Insert, Parallelogram Shape, 6.9 mm Thickness, 9.55 mm Width, 16.3 mm Length, P Chipbreaker, 0.8 mm Corner Radius, Positive Rake, 15 deg Lead Angle, Manufacturers Grade: IC28, ISO Code: HM90 ADCR 1505PDFR-P IC28, Right Hand of Insert, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationCounterboring, Facing, Slotting, Shouldering and Rampdown
ChipbreakerP
Corner Radius0.8 mm
FinishUncoated
Hand of InsertRight
Insert Size1505
Insert StyleHM90 ADCR
ISO CodeHM90 ADCR 1505PDFR-P IC28
Lead Angle15 deg
Length16.3 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELI2000
ShapeParallelogram
Thickness6.9 mm
Width9.55 mm
