Iscar ISCAR 5602964

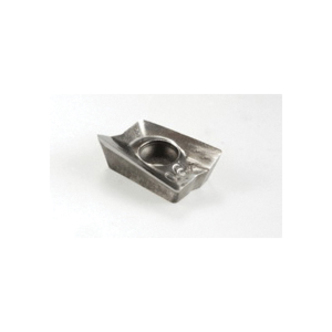

Iscar 5602964 HELI2000 Single Sided Milling Insert, APCR Insert, 100304 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N
Invoice description:
Hm90 Apcr 100304pdfr-p 2 8
Factory Order
Iscar Milling Insert, Single Sided, Series: HELI2000, APCR Insert, 100304 Insert, 85 deg Parallelogram, 3.85 mm Thickness, 6.52 mm Width, 11.25 mm Length, P Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC28, ISO Code: HM90 APCR 100304PDFR-P IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application
Specifications
ApplicationFacing, Helical Interpolation, Shouldering, Slotting, Plunging and Recessing
ChipbreakerP
Corner Radius0.4 mm
FinishUncoated
Hand of InsertRight
Insert Size100304
Insert StyleAPCR
ISO CodeHM90 APCR 100304PDFR-P IC28
Length11.25 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELI2000
Shape85 deg Parallelogram
Thickness3.85 mm
TypeSingle Sided
Width6.52 mm
Additional Information
Country of OriginIL
