Iscar ISCAR 5602960

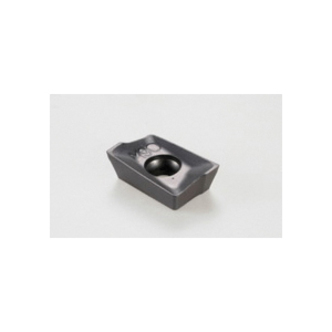

Iscar 5602960 HELI2000 Single Sided Milling Insert, APCT Insert, 100302 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Hm90 Apct 100302r-pdr 92 8
Factory Order

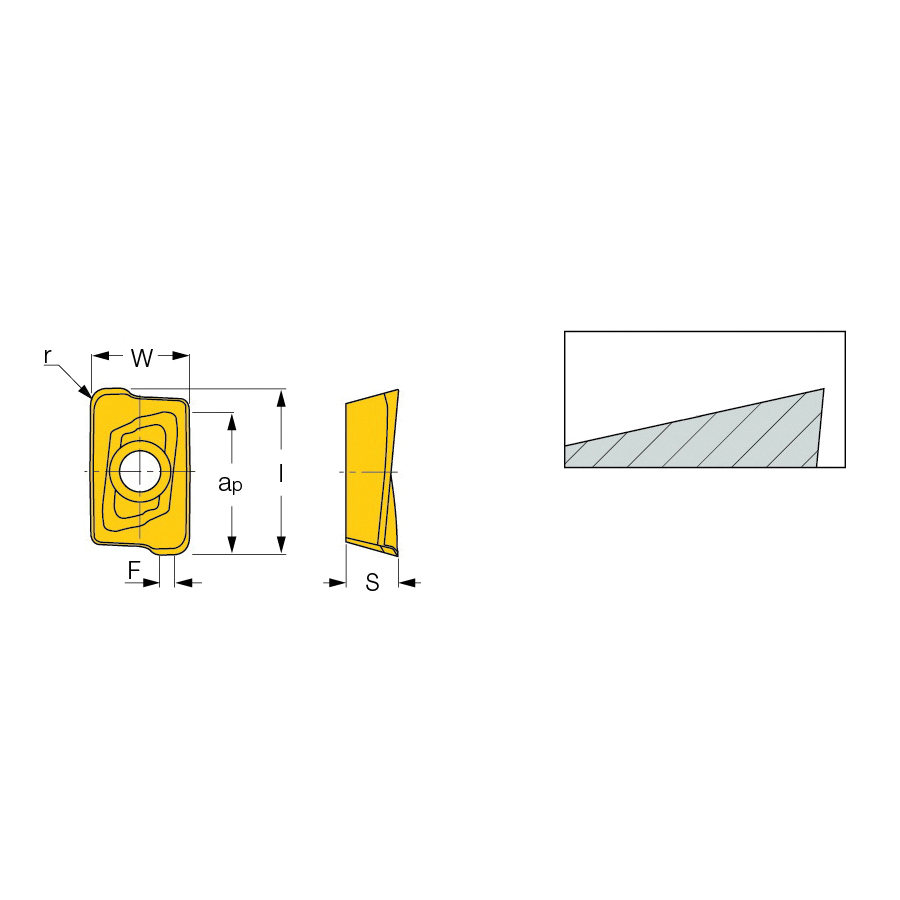

Iscar Milling Insert, Single Sided, Series: HELI2000, APCT Insert, 100302 Insert, 85 deg Parallelogram Shape, 3.53 mm Thickness, 6.96 mm Width, 11.66 mm Length, PDR Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: HM90 APCT 100302R-PDR IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerPDR
Corner Radius0.2 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size100302
Insert StyleAPCT
ISO CodeHM90 APCT 100302R-PDR IC928
Length11.66 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELI2000
Shape85 deg Parallelogram
Thickness3.53 mm
TypeSingle Sided
Width6.96 mm
Additional Information
Country of OriginIL
