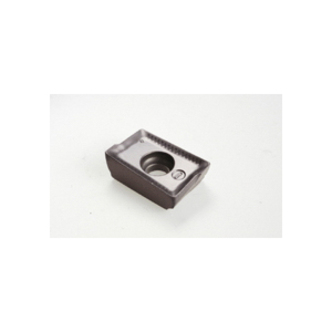

Iscar ISCAR 5602539
Iscar 5602539 MILL2000 Single Sided Heavy Duty Milling Insert, AXKT Insert, 1304 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
3m Axkt 1304pdr-mm Ic928
Factory Order
Iscar Milling Insert, Single Sided Heavy Duty, Series: MILL2000, AXKT Insert, 1304 Insert, 85 deg Parallelogram Shape, 4.55 mm Thickness, 8.4 mm Width, 14.12 mm Length, MM Chipbreaker, 0.6 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: 3M AXKT 1304PDR-MM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Features
- MILL2000 heavy duty design, dovetail section shape, helical cutting edge
- Enable a secure clamping and high durability in rough applications
Specifications
ApplicationCounterboring, Facing, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.6 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size1304
Insert StyleAXKT
ISO Code3M AXKT 1304PDR-MM IC928
Length14.12 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesMILL2000
Shape85 deg Parallelogram
Thickness4.55 mm
TypeSingle Sided Heavy Duty
Width8.4 mm
Additional Information
Country of OriginIS
