Iscar ISCAR 5602498

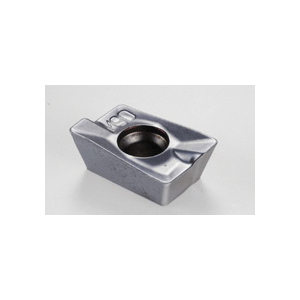

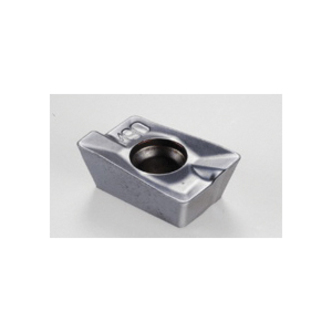

Iscar 5602498 HELI2000 Single Sided Milling Insert, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC910, 85 deg Parallelogram Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5602498
$26.40 EA
Factory Order
Estimated to ship in 14 days
QTY:

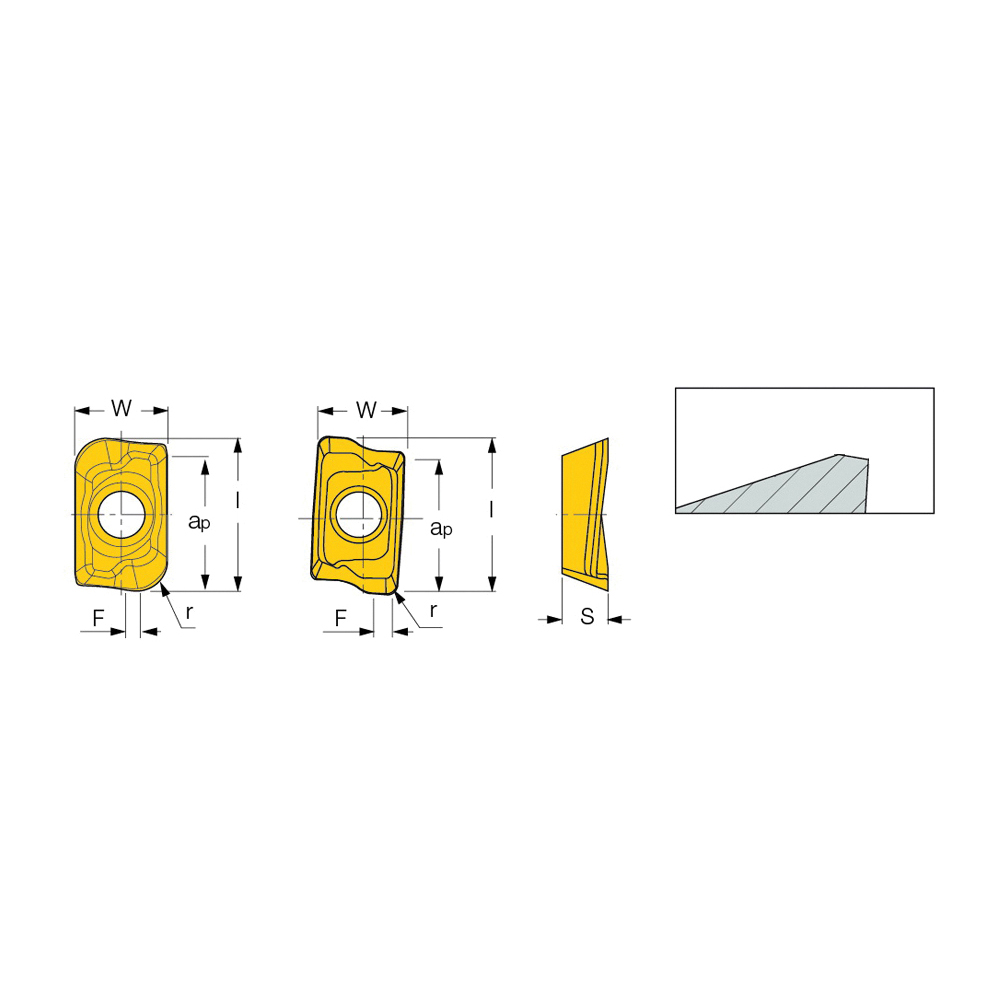

Iscar Milling Insert, Single Sided, Series: HELI2000, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.85 mm Thickness, 9.65 mm Width, 16.18 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: HM90 ADKT 1505PDR IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationCounterboring, Countersinking, Drill Mill, Facing, Rampdown, Shouldering, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerPDR
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeHM90 ADKT 1505PDR IC910
Length16.18 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELI2000
Shape85 deg Parallelogram
Thickness5.85 mm
TypeSingle Sided
Width9.65 mm
