Iscar ISCAR 5602495

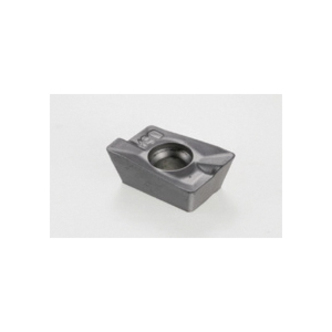

Iscar 5602495 HELI2000 Milling Insert, ANSI Code: HM90 ADKT 1505PDR, HM90 Insert, 1505 Insert, Manufacturers Grade: IC928
Invoice description:
Hm90 Adkt 1505pdr Ic928
Factory Order
Iscar Milling Insert, Series: HELI2000, HM90 Insert, 1505 Insert, 0.38 in Inscribed Circle, 0.23 in Thickness, 0.38 in Width, 0.637 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC928, ANSI Code: HM90 ADKT 1505PDR, ISO Code: HM90 ADKT 1505
Features
- With various corner radii for general use
Specifications
ApplicationMilling
ANSI CodeHM90 ADKT 1505PDR
Corner Radius0.031 in
Inscribed Circle0.38 in
Insert Size1505
Insert StyleHM90
ISO CodeHM90 ADKT 1505
Length0.637 in
Manufacturers GradeIC928
SeriesHELI2000
Thickness0.23 in
Width0.38 in
Additional Information
Standards/ApprovalISO 13399
