Iscar ISCAR 5602492

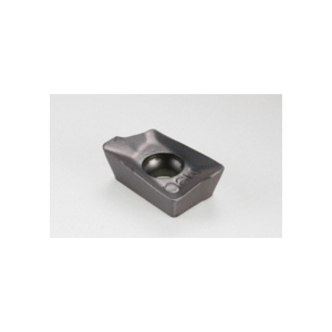

Iscar 5602492 HELI2000 Single Sided Milling Insert, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: K, P
Invoice description:
Hm90 Apkt 1003pdr Ic950
Factory Order
Iscar Milling Insert, Single Sided, Series: HELI2000, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.53 mm Thickness, 6.76 mm Width, 11.45 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC950, ISO Code: HM90 APKT 1003PDR IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationCountersinking, Facing, Profiling, Rampdown, Shouldering, Slanted Shoulder and Chamfer and Slotting
ChipbreakerPDR
Corner Radius0.8 mm
FinishPVD Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size1003
Insert StyleAPKT
ISO CodeHM90 APKT 1003PDR IC950
Length11.45 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELI2000
Shape85 deg Parallelogram
Thickness3.53 mm
TypeSingle Sided
Width6.76 mm
Additional Information
Country of OriginIL
