Iscar ISCAR 5602403

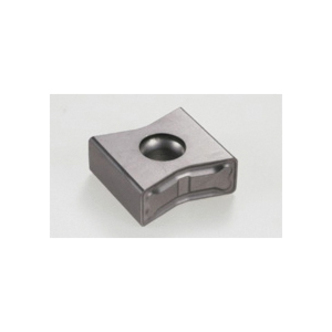

Iscar 5602403 TANGMILL TANGENTIAL LINE Milling Insert With 4 Right or Left Hand Cutting Edges, LNKX Insert, 1506 Insert, Carbide, Manufacturers Grade: IC910, Rectangle Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5602403
$37.22 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNKX Insert, 1506 Insert, Rectangle Shape, 13.88 mm Thickness, 6 mm Width, 15 mm Length, PNTN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: LNKX 1506PNTN IC910, Neutral Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerPNTN
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertNeutral
Insert Size1506
Insert StyleLNKX
ISO CodeLNKX 1506PNTN IC910
Length15 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.88 mm
Width6 mm
