Iscar ISCAR 5602374

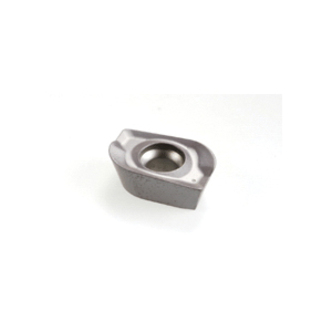

Iscar 5602374 HELIMILL Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150550 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: C1, C2, C5, C6, P, M, S

UNSPSC: 23242107
Manufacturer PN: 5602374
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:

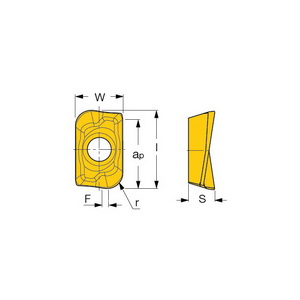

Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 150550 Insert, 85 deg Parallelogram Shape, 5.3 mm Thickness, 9.57 mm Width, 15.1 mm Length, HM Chipbreaker, 5 mm Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC928, ISO Code: ADKT 150550R-HM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius5 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size150550
Insert StyleADKT
ISO CodeADKT 150550R-HM IC928
Lead Angle15 deg
Length15.1 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC1, C2, C5, C6, P, M, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.3 mm
Width9.57 mm
