Iscar ISCAR 5602365

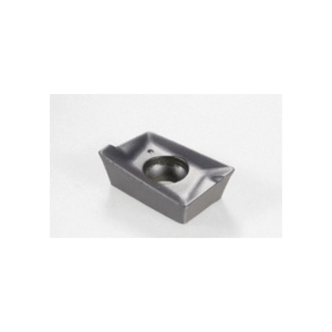

Iscar 5602365 HELIMILL Single Sided Reinforced Milling Insert With Helical Cutting Edge, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5602365
$20.72 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided Reinforced, Series: HELIMILL, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.47 mm Thickness, 6.7 mm Width, 11 mm Length, RM Chipbreaker, 0.5 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: APKT 1003PDTR-RM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Countersinking, Drill Mill, Facing, Rampdown, Shouldering, Plunging and Recessing
ChipbreakerRM
Corner Radius0.5 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size1003
Insert StyleAPKT
ISO CodeAPKT 1003PDTR-RM IC928
Length11 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
TypeSingle Sided Reinforced
Width6.7 mm
