Iscar ISCAR 5602363

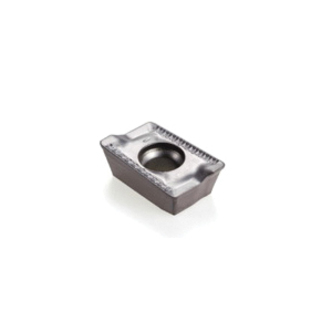

Iscar 5602363 HELIMILL Single Sided Ribbed Milling Insert With 2 Helical Cutting Edge and Ribs, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5602363
$24.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided Ribbed, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.63 mm Thickness, 9.54 mm Width, 15.75 mm Length, 76 Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: ADKT 1505PDTR-76 IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
Chipbreaker76
Corner Radius1 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDTR-76 IC928
Length15.75 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
TypeSingle Sided Ribbed
Width9.54 mm
