Iscar ISCAR 5602325

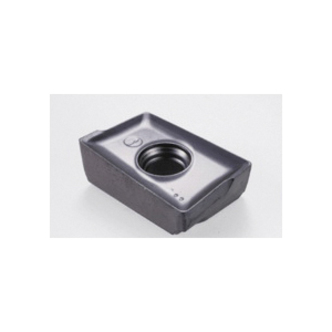

Iscar 5602325 MILL2000 Single Sided Heavy Duty Milling Insert, AXKT Insert, 2006 Insert, Carbide, Manufacturers Grade: IC910, 85 deg Parallelogram Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5602325
$40.80 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided Heavy Duty, Series: MILL2000, AXKT Insert, 2006 Insert, 85 deg Parallelogram Shape, 6.8 mm Thickness, 13.5 mm Width, 22.5 mm Length, PDTR Chipbreaker, 1 mm Corner Radius, Positive Rake, Manufacturers Grade: IC910, ISO Code: 3M AXKT 2006PDTR IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationCounterboring, Facing, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerPDTR
Corner Radius1 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Insert Size2006
Insert StyleAXKT
ISO Code3M AXKT 2006PDTR IC910
Length22.5 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
RakePositive
SeriesMILL2000
Shape85 deg Parallelogram
Thickness6.8 mm
TypeSingle Sided Heavy Duty
Width13.5 mm
