Iscar ISCAR 5602196

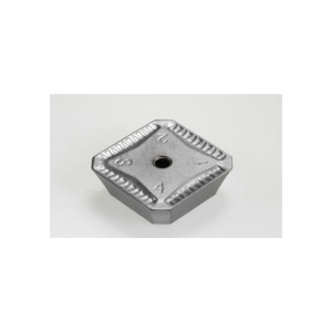

Iscar 5602196 ISCARMILL Milling Insert With Ribs Along Edges, ANSI Code: SEKR 53AFTN-76 IC328, SEKR Insert, 1504 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5602196
$16.52 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: ISCARMILL, SEKR Insert, 1504 Insert, Squared, 15.88 mm Inscribed Circle, 4.76 mm Thickness, 15.88 mm Width, 15.88 mm Length, 76 Chipbreaker, Manufacturers Grade: IC328, ANSI Code: SEKR 53AFTN-76 IC328, ISO Code: SEKR 1504AFTN-76 IC328, Neutral Hand, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
ANSI CodeSEKR 53AFTN-76 IC328
Chipbreaker76
FinishPVD-TiCN Coated
Hand of InsertNeutral
Inscribed Circle15.88 mm
Insert Size1504
Insert StyleSEKR
ISO CodeSEKR 1504AFTN-76 IC328
Length15.88 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISCARMILL
ShapeSquared
Thickness4.76 mm
Width15.88 mm
