Iscar ISCAR 5602068

Iscar 5602068 HELIOCTO Single Sided Milling Insert, OFCR Insert, 07T3 Insert, Carbide, Manufacturers Grade: IC28, Octagon Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5602068
$26.88 EA
Factory Order
Estimated to ship in 14 days
QTY:

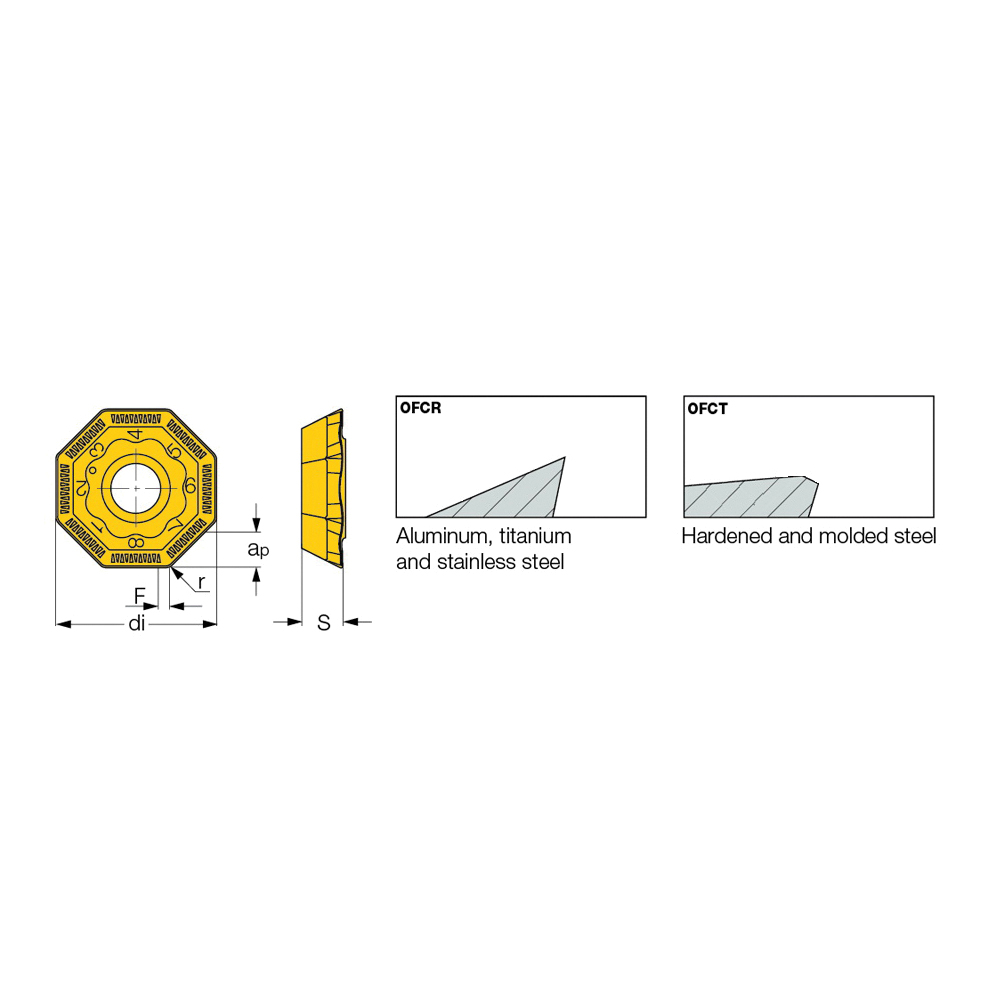

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OFCR Insert, 07T3 Insert, Octagon, 17.8 mm Inscribed Circle, 4.35 mm Thickness, P Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC28, ISO Code: OFCR 07T3-AEN-P IC28, Ambidextrous Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationFacing, Helical Interpolation, Rampdown, Slanted Shoulder and Chamfer
ChipbreakerP
Corner Radius0.6 mm
FinishUncoated
Hand of InsertNeutral
Inscribed Circle17.8 mm
Insert Size07T3
Insert StyleOFCR
ISO CodeOFCR 07T3-AEN-P IC28
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
SeriesHELIOCTO
ShapeOctagon
Thickness4.35 mm
TypeSingle Sided
