Iscar ISCAR 5601931

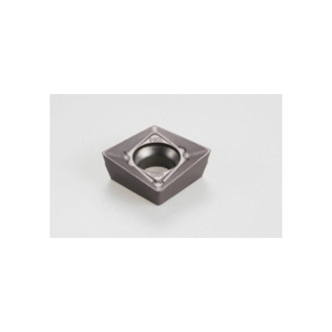

Iscar 5601931 HELIQUAD Single Sided Milling Insert With 2 Right and 2 Left Hand Cutting Edges, XPMT Insert, 100408 Insert, Carbide, Manufacturers Grade: IC910, Squared Shape, Material Grade: K, P
Invoice description:
Xpmt 100408t-hq Ic910
Factory Order

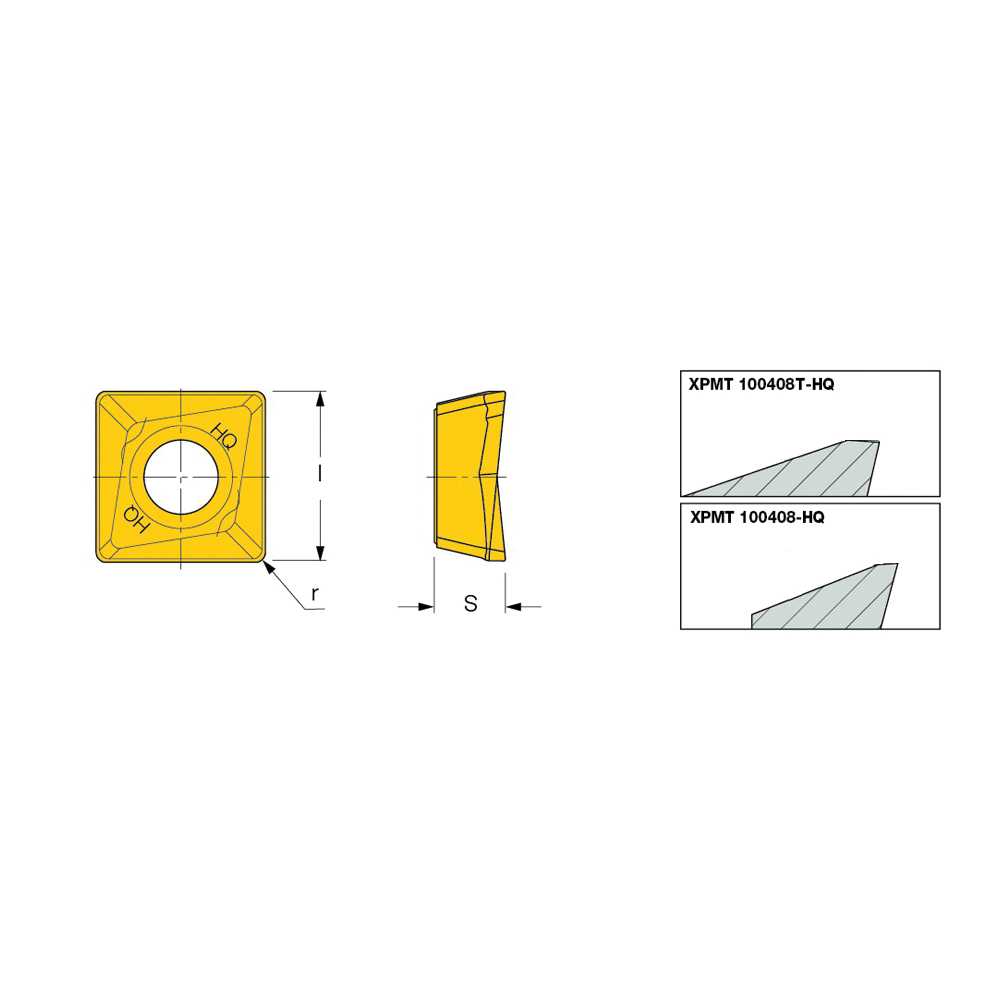

Iscar Milling Insert, Single Sided, Series: HELIQUAD, XPMT Insert, 100408 Insert, Squared Shape, 10.2 mm Inscribed Circle, 4.12 mm Thickness, 10.2 mm Width, 10.2 mm Length, HQ Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: XPMT 100408T-HQ IC910, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Facing, Rampdown, Shouldering, Side Slotting and Slotting
ChipbreakerHQ
Corner Radius0.6 mm
FinishPVD-AlTiN Coated
Inscribed Circle10.2 mm
Insert Size100408
Insert StyleXPMT
ISO CodeXPMT 100408T-HQ IC910
Length10.2 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIQUAD
ShapeSquared
Thickness4.12 mm
TypeSingle Sided
Width10.2 mm
Additional Information
Country of OriginIL
