Iscar ISCAR 5601921

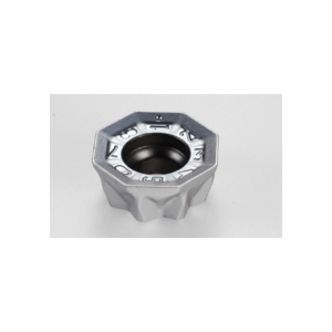

Iscar 5601921 CHAMMILL Milling Insert, O45MT Insert, 050505 Insert, Carbide, Manufacturers Grade: IC328, Octagon Shape, Material Grade: C2, C3, C5, C6, P, M, S

UNSPSC: 23242107
Manufacturer PN: 5601921
$22.88 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: CHAMMILL, O45MT Insert, 050505 Insert, Octagon Shape, 11.54 mm Inscribed Circle, 5 mm Thickness, RM Chipbreaker, 0.5 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: O45MT 050505-RM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationBottom Shouldering, Facing, Rampdown, Shouldering, Side Slotting, Slotting, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius0.5 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle11.54 mm
Insert Size050505
Insert StyleO45MT
ISO CodeO45MT 050505-RM IC328
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesCHAMMILL
ShapeOctagon
Thickness5 mm
