Iscar ISCAR 5601902

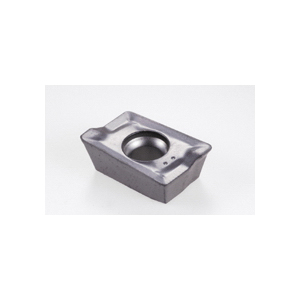

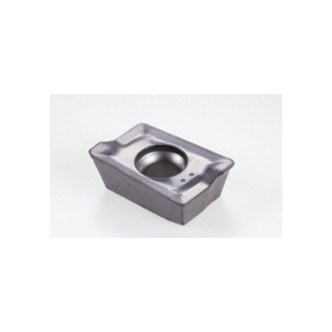

Iscar 5601902 HELIMILL Milling Insert With Reinforced Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC910, 85 deg Parallelogram Shape, Material Grade: C2, C3, C6, P, K
Invoice description:
Adkt 1505pdtr-rm Ic910
Factory Order

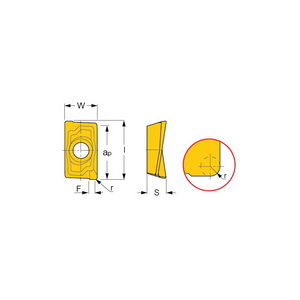

Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 5.63 mm Thickness, 9.54 mm Width, 15.75 mm Length, RM Chipbreaker, 1 mm Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC910, ISO Code: ADKT 1505PDTR-RM IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: C2, C3, C6, P, K, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerRM
Corner Radius1 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDTR-RM IC910
Lead Angle15 deg
Length15.75 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C6, P, K
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
Width9.54 mm
Additional Information
Country of OriginIS
