Iscar ISCAR 5601894

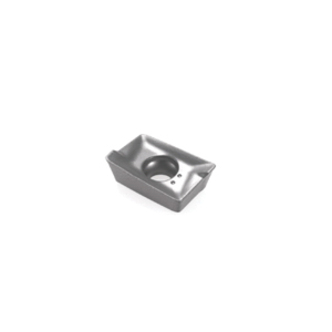

Iscar 5601894 HELIMILL Milling Insert With Reinforced Helical Cutting Edges, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: C1, C2, C3, C5, C6, P, K

UNSPSC: 23242107
Manufacturer PN: 5601894
$20.72 EA
Factory Order
Estimated to ship in 14 days
QTY:

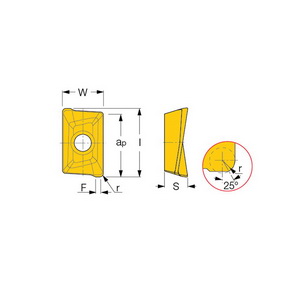

Iscar Milling Insert, Series: HELIMILL, APKT Insert, 1003 Insert, 85 deg Parallelogram, 3.47 mm Thickness, 6.7 mm Width, 11 mm Length, RM Chipbreaker, 0.5 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC950, ISO Code: APKT 1003PDTR-RM IC950, Right Hand, Carbide, PVD Coated, Material Grade: C1, C2, C3, C5, C6, P, K, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Countersinking, Drill Mill, Facing, Rampdown, Shouldering, Plunging and Recessing
ChipbreakerRM
Corner Radius0.5 mm
FinishPVD Coated
Hand of InsertRight
Insert Size1003
Insert StyleAPKT
ISO CodeAPKT 1003PDTR-RM IC950
Lead Angle11 deg
Length11 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeC1, C2, C3, C5, C6, P, K
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
Width6.7 mm
