Iscar ISCAR 5601809

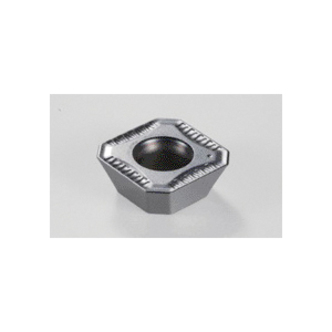

Iscar 5601809 ISCARMILL Single Sided Milling Insert With Ribs Along Edges, ANSI Code: SEMT 43AFTN-76 IC328, SEMT Insert, 1204 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5601809
$14.52 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: ISCARMILL, SEMT Insert, 1204 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 76 Chipbreaker, 45 deg Lead Angle, Manufacturers Grade: IC328, ANSI Code: SEMT 43AFTN-76 IC328, ISO Code: SEMT 1204AFTN-76 IC328, Neutral Hand, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ANSI CodeSEMT 43AFTN-76 IC328
Chipbreaker76
FinishPVD-TiCN Coated
Hand of InsertNeutral
Inscribed Circle12.7 mm
Insert Size1204
Insert StyleSEMT
ISO CodeSEMT 1204AFTN-76 IC328
Lead Angle45 deg
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISCARMILL
ShapeSquared
Thickness4.76 mm
TypeSingle Sided
Width12.7 mm
