Iscar ISCAR 5601704

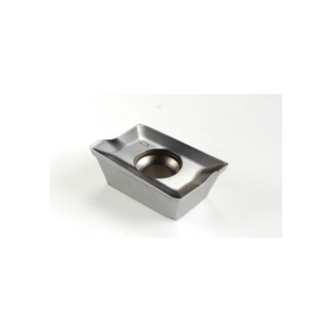

Iscar 5601704 HELIMILL Milling Insert, ADKR Insert, 150504 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S
Invoice description:
Adkr 150504pdr-hm Ic328
Factory Order

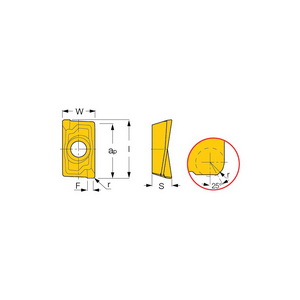

Iscar Milling Insert, Series: HELIMILL, ADKR Insert, 150504 Insert, 85 deg Parallelogram, 5.63 mm Thickness, 9.92 mm Width, 16.3 mm Length, HM Chipbreaker, 0.4 mm Corner Radius, Positive Rake, 15 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: ADKR 150504PDR-HM IC328, Right Hand, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationBottom Shouldering, Counterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.4 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size150504
Insert StyleADKR
ISO CodeADKR 150504PDR-HM IC328
Lead Angle15 deg
Length16.3 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
Width9.92 mm
Additional Information
Country of OriginIS
