Iscar ISCAR 5601697

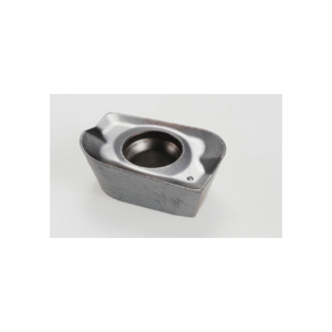

Iscar 5601697 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150540 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Adkt 150540r-hm Ic328
Factory Order
Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 150540 Insert, 85 deg Parallelogram Shape, 5.6 mm Thickness, 9.57 mm Width, 15.4 mm Length, HM Chipbreaker, 4 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: ADKT 150540R-HM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius4 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size150540
Insert StyleADKT
ISO CodeADKT 150540R-HM IC328
Length15.4 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.6 mm
TypeSingle Sided
Width9.57 mm
Additional Information
Country of OriginIL
