Iscar ISCAR 5601634

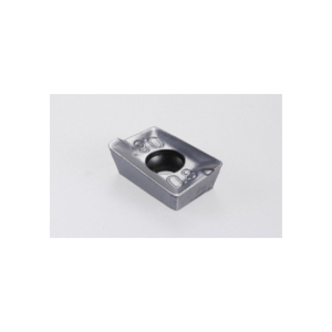

Iscar 5601634 HELIMILL Milling Insert With Helical Cutting Edge, APKT Insert, 100308 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S
Invoice description:
Apkt 100308pdtr-rm Ic328 Milling Insert
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5601634
$26.65 EA
Factory OrderEstimated to ship in 14 days

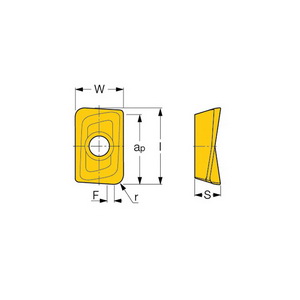

Iscar Milling Insert, APKT Insert, 100308 Insert, 85 deg Parallelogram, 3.47 mm Thickness, 6.7 mm Width, 11 mm Length, RM Chipbreaker, 0.8 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: APKT 100308PDTR-RM IC328, Right Hand, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius0.8 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size100308
Insert StyleAPKT
ISO CodeAPKT 100308PDTR-RM IC328
Lead Angle11 deg
Length11 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
Width6.7 mm
Additional Information
Country of OriginIS
