Iscar ISCAR 5601625

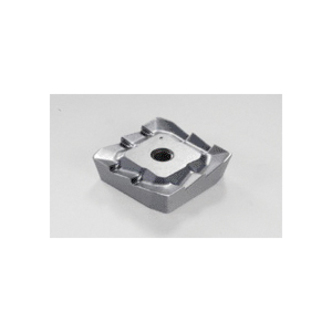

Iscar 5601625 ISOSHRED Single Sided Milling Insert With Chip Splitting Serrated Cutting Edge, SPKR Insert, 1203 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5601625
$14.48 EA
Factory Order
Estimated to ship in 14 days
QTY:

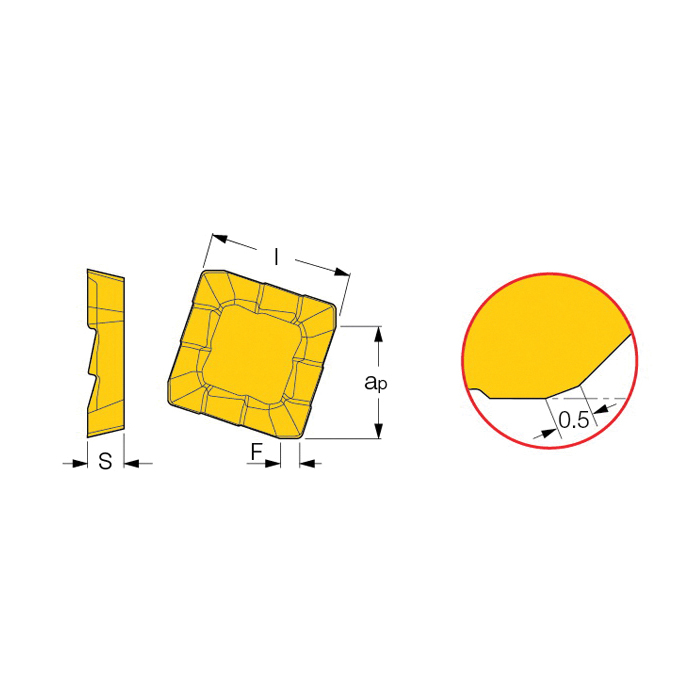

Iscar Milling Insert, Single Sided, Series: ISOSHRED, SPKR Insert, 1203 Insert, Squared Shape, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, HS Chipbreaker, Positive Rake, Manufacturers Grade: IC328, ISO Code: SPKR 1203EDTR-HS IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerHS
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle12.7 mm
Insert Size1203
Insert StyleSPKR
ISO CodeSPKR 1203EDTR-HS IC328
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesISOSHRED
ShapeSquared
Thickness3.18 mm
TypeSingle Sided
Width12.7 mm
