Iscar ISCAR 5601366

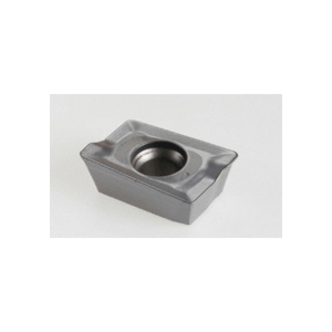

Iscar 5601366 HELIMILL Single Sided Reinforced Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5601366
$24.86 EA
Factory Order
Estimated to ship in 14 days
QTY:

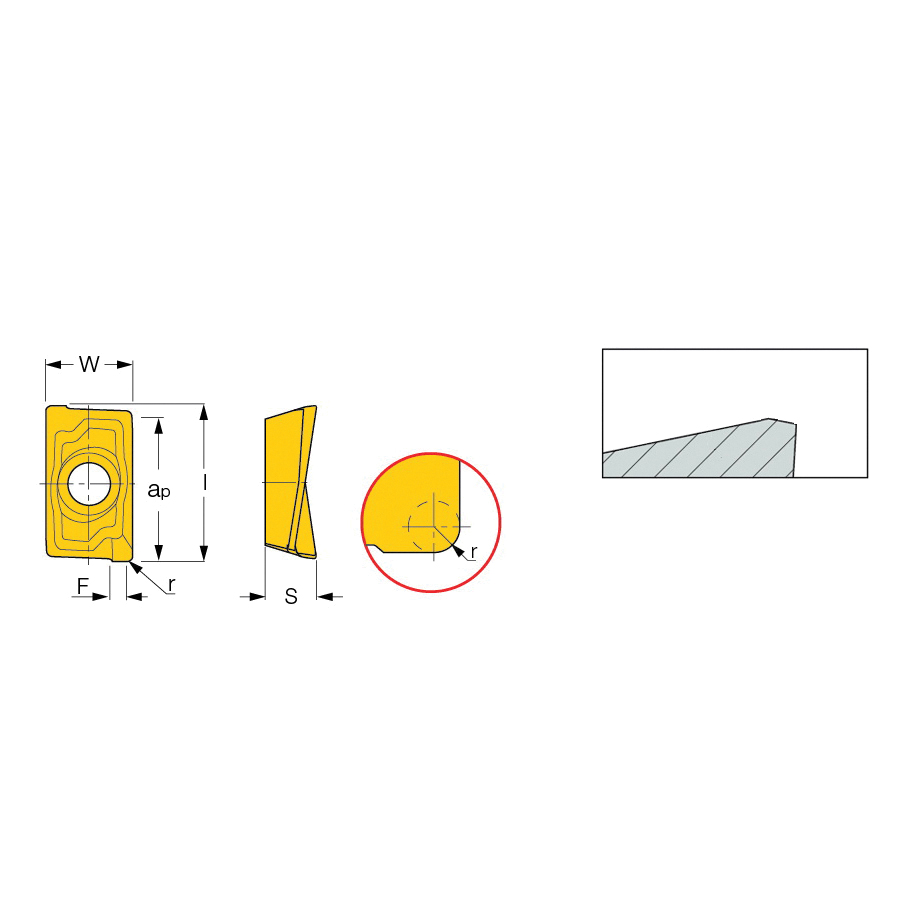

Iscar Milling Insert, Single Sided Reinforced, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.63 mm Thickness, 9.54 mm Width, 15.75 mm Length, RM Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: ADKT 1505PDTR-RM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerRM
Corner Radius1 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDTR-RM IC328
Length15.75 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
TypeSingle Sided Reinforced
Width9.54 mm
