Iscar ISCAR 5601349

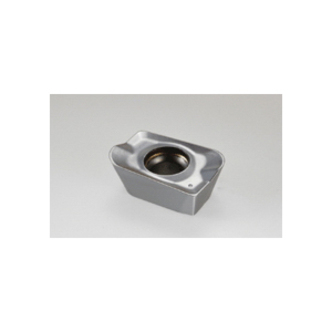

Iscar 5601349 HELIMILL Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150532 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S

Pack Size: 10
UNSPSC: 23242107
Manufacturer PN: 5601349
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 150532 Insert, 85 deg Parallelogram Shape, 5.6 mm Thickness, 9.57 mm Width, 15.5 mm Length, HM Chipbreaker, 3.2 mm Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: ADKT 150532R-HM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius3.2 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size150532
Insert StyleADKT
ISO CodeADKT 150532R-HM IC328
Lead Angle15 deg
Length15.5 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.6 mm
Width9.57 mm
