Iscar ISCAR 5601265

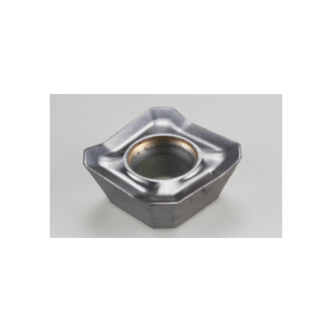

Iscar 5601265 ISCARMILL Milling Insert, SEKT Insert, 1204 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
In stock
(10)
Iscar Milling Insert, Series: ISCARMILL, SEKT Insert, 1204 Insert, Squared Shape, 12.9 mm Inscribed Circle, 5.16 mm Thickness, 12.9 mm Width, 12.9 mm Length, HM Chipbreaker, Positive Rake, 20 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SEKT 1204AFR-HM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Side Plunging, Slanted Shoulder and Chamfer
ChipbreakerHM
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle12.9 mm
Insert Size1204
Insert StyleSEKT
ISO CodeSEKT 1204AFR-HM IC328
Lead Angle20 deg
Length12.9 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesISCARMILL
ShapeSquared
Thickness5.16 mm
Width12.9 mm
