Iscar ISCAR 5601257

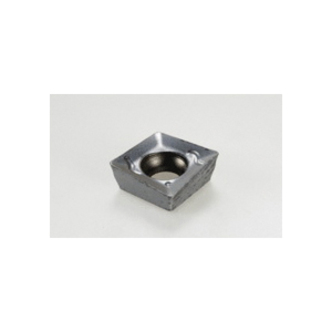

Iscar 5601257 HELIQUAD Single Sided Milling Insert With 2 Right and 2 Left Hand Cutting Edges, XOMT Insert, 060204 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
Invoice description:
Xomt 060204-hq Ic328
Factory Order

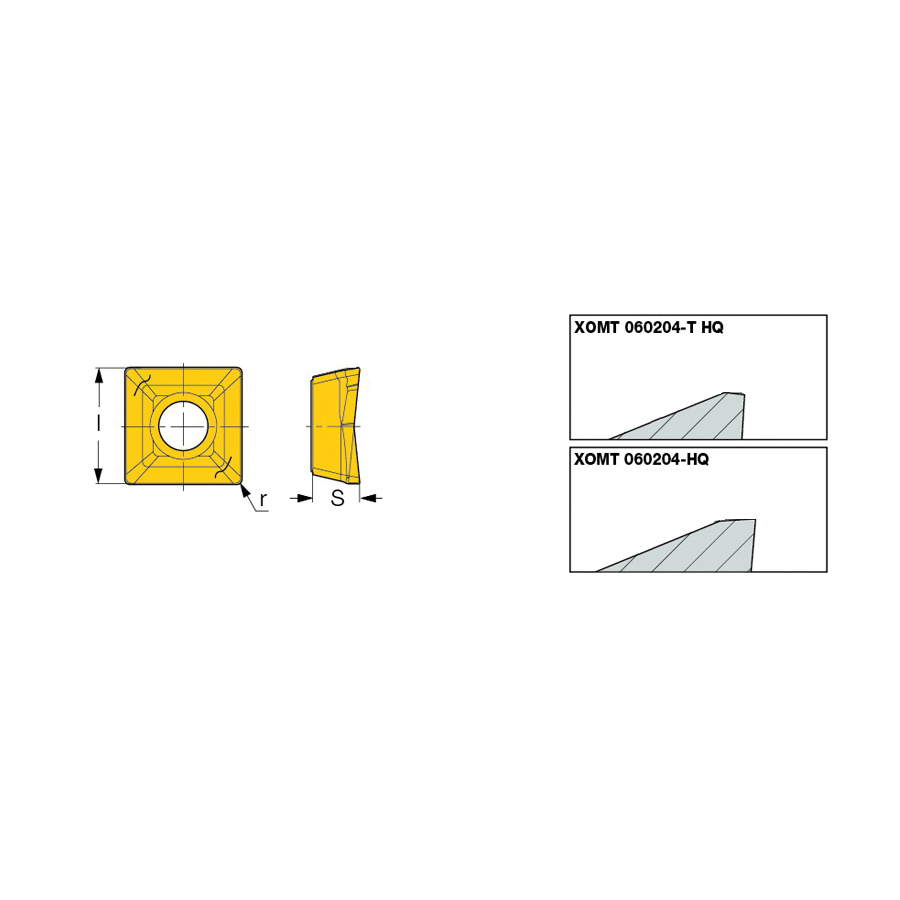

Iscar Milling Insert, Single Sided, Series: HELIQUAD, XOMT Insert, 060204 Insert, Squared Shape, 6.16 mm Inscribed Circle, 2.56 mm Thickness, 6.16 mm Width, 6.16 mm Length, HQ Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: XOMT 060204-HQ IC328, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Chamfering and Bottom Deburring, Counterboring, Countersinking, Drill Mill, Rampdown and Shouldering
ChipbreakerHQ
Corner Radius0.4 mm
FinishPVD-TiCN Coated
Inscribed Circle6.16 mm
Insert Size060204
Insert StyleXOMT
ISO CodeXOMT 060204-HQ IC328
Length6.16 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIQUAD
ShapeSquared
Thickness2.56 mm
TypeSingle Sided
Width6.16 mm
Additional Information
Country of OriginIL
