Iscar ISCAR 5601256

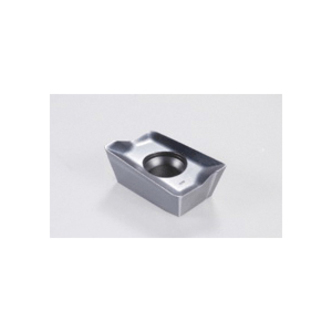

Iscar 5601256 HELIMILL Single Sided Milling Insert, ADKR Insert, 1505 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Adkr 1505pdr-hm Ic328
Factory Order
Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKR Insert, 1505 Insert, 85 deg Parallelogram Shape, 6 mm Thickness, 9.6 mm Width, 15.95 mm Length, HM Chipbreaker, 0.8 mm Corner Radius, Positive Rake, Manufacturers Grade: IC328, ISO Code: ADKR 1505PDR-HM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationBottom Shouldering, Counterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.8 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size1505
Insert StyleADKR
ISO CodeADKR 1505PDR-HM IC328
Length15.95 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness6 mm
TypeSingle Sided
Width9.6 mm
Additional Information
Country of OriginIL
