Iscar ISCAR 5601218

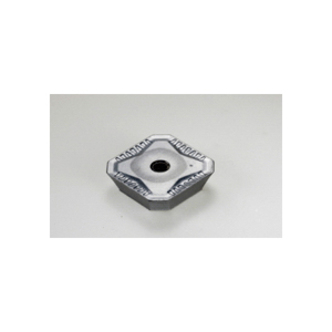

Iscar 5601218 ISCARMILL Milling Insert With Ribs, SEKR Insert, 1203 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5601218
$10.68 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: ISCARMILL, SEKR Insert, 1203 Insert, Squared Shape, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, 76 Chipbreaker, 20 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SEKR 1203AFN-76 IC328, Ambidextrous Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
Chipbreaker76
FinishPVD-TiCN Coated
Hand of InsertAmbidextrous
Inscribed Circle12.7 mm
Insert Size1203
Insert StyleSEKR
ISO CodeSEKR 1203AFN-76 IC328
Lead Angle20 deg
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISCARMILL
ShapeSquared
Thickness3.18 mm
Width12.7 mm
