Iscar ISCAR 5601196

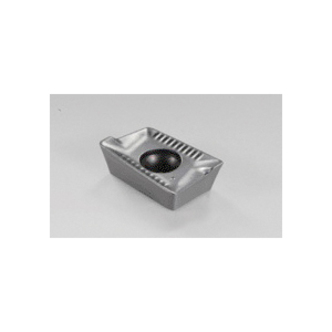

Iscar 5601196 HELIMILL Single Sided Ribbed Milling Insert With 2 Helical Cutting Edges, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Apkt 1003pdtr-76 Ic328
Factory Order

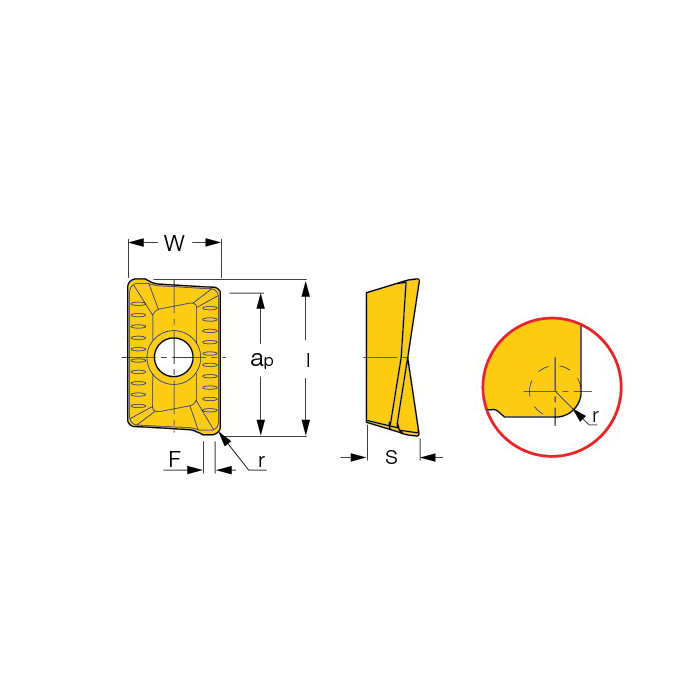

Iscar Milling Insert, Single Sided Ribbed, Series: HELIMILL, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.47 mm Thickness, 6.7 mm Width, 11 mm Length, 76 Chipbreaker, 0.5 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: APKT 1003PDTR-76 IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
Chipbreaker76
Corner Radius0.5 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size1003
Insert StyleAPKT
ISO CodeAPKT 1003PDTR-76 IC328
Length11 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
TypeSingle Sided Ribbed
Width6.7 mm
Additional Information
Country of OriginIL
