Iscar ISCAR 5601150

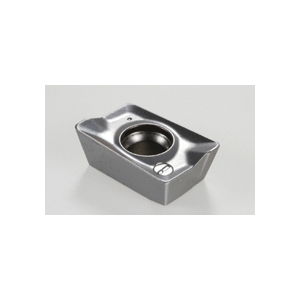

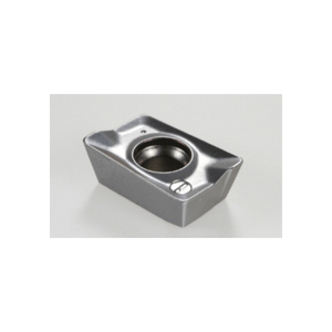

Iscar 5601150 HELIMILL Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S

UNSPSC: 23242107
Manufacturer PN: 5601150
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:

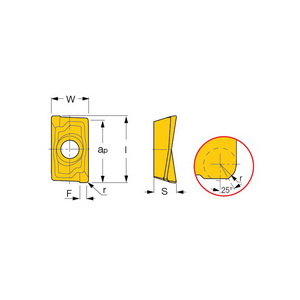

Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram, 0.222 in Thickness, 0.377 in Width, 0.616 in Length, HM Chipbreaker, 0.031 in Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: ADKT 1505PDR-HM IC328, Right Hand, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius0.031 in
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDR-HM IC328
Lead Angle15 deg
Length0.616 in
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness0.222 in
Width0.377 in
