Iscar ISCAR 5601024

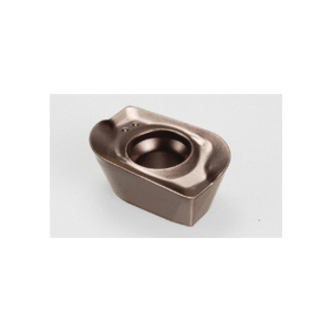

Iscar 5601024 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150550 Insert, Carbide, Manufacturers Grade: IC520M, 85 deg Parallelogram Shape, Material Grade: K, M, P
Invoice description:
Adkt 150550r-hm Ic520m
Factory Order

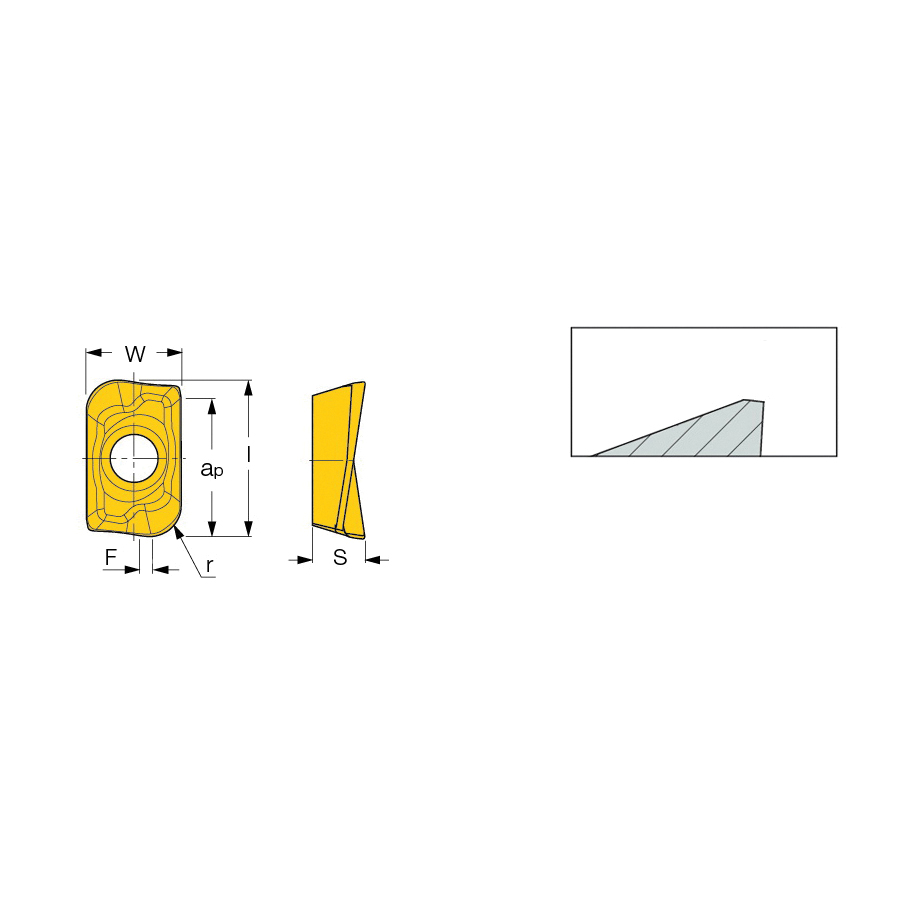

Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 150550 Insert, 85 deg Parallelogram Shape, 5.3 mm Thickness, 9.57 mm Width, 15.1 mm Length, HM Chipbreaker, 5 mm Corner Radius, Positive Rake, Manufacturers Grade: IC520M, ISO Code: ADKT 150550R-HM IC520M, Right Hand of Insert, Carbide, CVD-TiCN Coated, Material Grade: K, M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius5 mm
FinishCVD-TiCN Coated
Hand of InsertRight
Insert Size150550
Insert StyleADKT
ISO CodeADKT 150550R-HM IC520M
Length15.1 mm
Manufacturers GradeIC520M
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron
Material GradeK, M, P
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.3 mm
TypeSingle Sided
Width9.57 mm
Additional Information
Country of OriginIL
