Iscar ISCAR 5600955

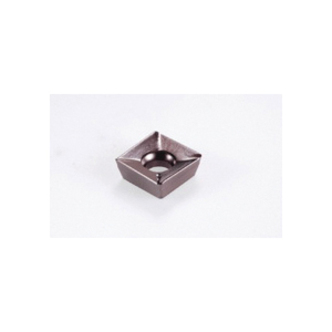

Iscar 5600955 HELIQUAD Single Sided Milling Insert, SOMT Insert, 060204 Insert, Carbide, Manufacturers Grade: IC520M, Squared Shape, Material Grade: K, M, P
Invoice description:
Somt 060204tr-hq Ic520m
Factory Order

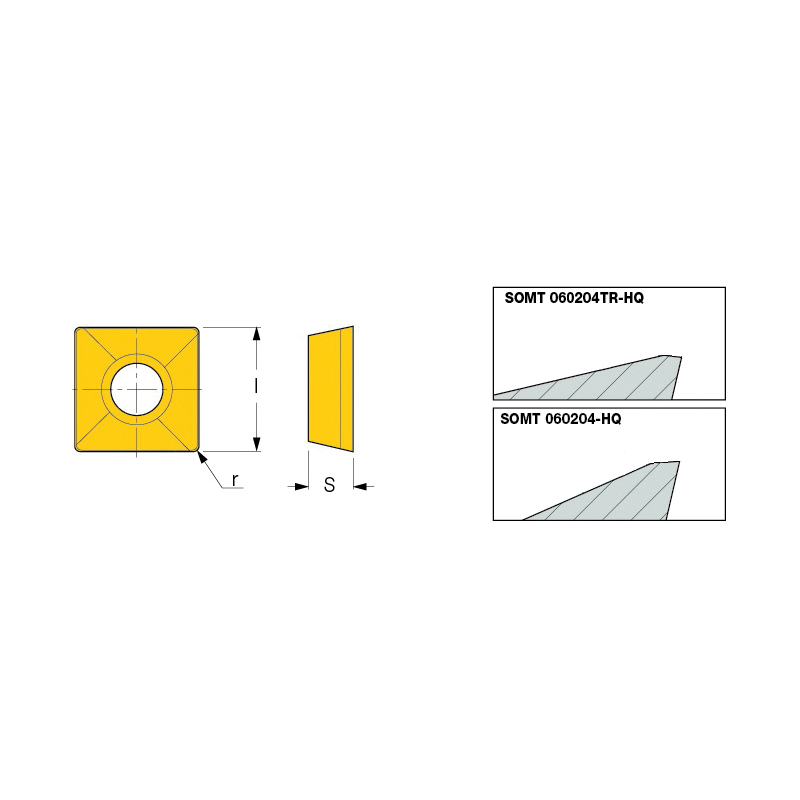

Iscar Milling Insert, Single Sided, SOMT Insert, 060204 Insert, Squared, 6.16 mm Inscribed Circle, 2.56 mm Thickness, 6.16 mm Width, 6.16 mm Length, HQ Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC520M, ISO Code: SOMT 060204TR-HQ IC520M, Carbide, CVD-TiCN Coated, Material Grade: K, M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron Material Application
Specifications
ApplicationChamfering and Bottom Deburring, Counterboring, Countersinking, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerHQ
Corner Radius0.4 mm
FinishCVD-TiCN Coated
Inscribed Circle6.16 mm
Insert Size060204
Insert StyleSOMT
ISO CodeSOMT 060204TR-HQ IC520M
Length6.16 mm
Manufacturers GradeIC520M
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron
Material GradeK, M, P
SeriesHELIQUAD
ShapeSquared
Thickness2.56 mm
TypeSingle Sided
Width6.16 mm
Additional Information
Country of OriginIL
