Iscar ISCAR 5600744

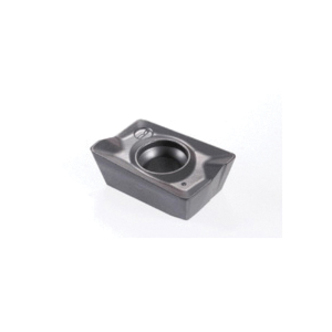

Iscar 5600744 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5600744
$22.70 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram, 9.52 mm Inscribed Circle, 5.64 mm Thickness, 9.57 mm Width, 15.65 mm Length, HM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC28, ISO Code: ADKT 1505PDR-HM IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius0.8 mm
FinishUncoated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDR-HM IC28
Length15.65 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.64 mm
TypeSingle Sided
Width9.57 mm
