Iscar ISCAR 5600632

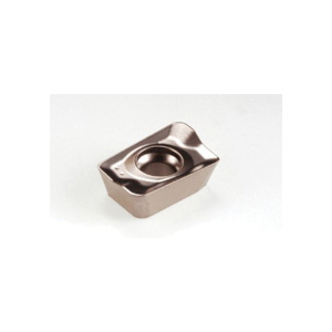

Iscar 5600632 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150516 Insert, Carbide, Manufacturers Grade: IC520M, 85 deg Parallelogram Shape, Material Grade: K, M, P
Invoice description:
Adkt 150516r-hm Ic520m
Factory Order
Iscar Milling Insert, Single Sided, Series: 1755, ADKT Insert, 150516 Insert, 85 deg Parallelogram, 9.52 mm Inscribed Circle, 5.6 mm Thickness, 9.57 mm Width, 15.6 mm Length, HM Chipbreaker, 1.6 mm Corner Radius, Positive Rake, Manufacturers Grade: IC520M, ISO Code: ADKT 150516R-HM IC520M, Right Hand, Carbide, CVD-TiCN Coated, Material Grade: K, M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius1.6 mm
FinishCVD-TiCN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size150516
Insert StyleADKT
ISO CodeADKT 150516R-HM IC520M
Length15.6 mm
Manufacturers GradeIC520M
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron
Material GradeK, M, P
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.6 mm
TypeSingle Sided
Width9.57 mm
Additional Information
Country of OriginIL
