Iscar ISCAR 5600507

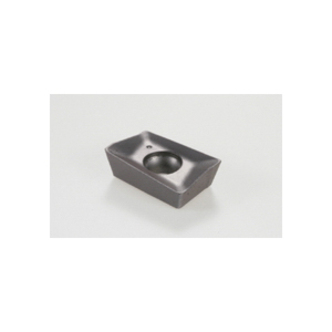

Iscar 5600507 HELIMILL Milling Insert With 2 Helical Cutting Edges, APKT Insert, 1003 Insert, Cermet, Manufacturers Grade: IC30N, 85 deg Parallelogram Shape, Material Grade: H, M, P
Invoice description:
Apkt 1003pdr-hm Ic30n
Factory Order
Iscar Milling Insert, Series: HELIMILL, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 0.14 in Thickness, 0.264 in Width, 0.431 in Length, HM Chipbreaker, 0.02 in Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC30N, ISO Code: APKT 1003PDR-HM IC30N, Right Hand of Insert, Cermet, Uncoated, Material Grade: H, M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.02 in
FinishUncoated
Hand of InsertRight
Insert Size1003
Insert StyleAPKT
ISO CodeAPKT 1003PDR-HM IC30N
Lead Angle11 deg
Length0.431 in
Manufacturers GradeIC30N
MaterialCermet
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Hard Steel and Hardened Cast Iron
Material GradeH, M, P
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness0.14 in
Width0.264 in
Additional Information
Country of OriginIS
