Iscar ISCAR 5600124

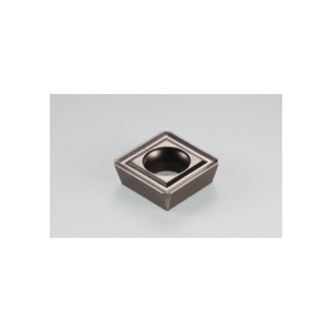

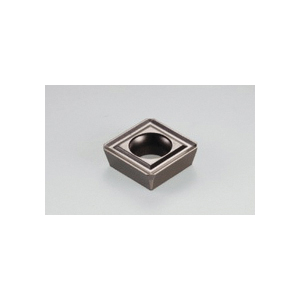

Iscar 5600124 ISCARMILL Single Sided Milling Insert, ANSI Code: SDMT 32AD-N IC520M, SDMT Insert, 0903 Insert, Carbide, Manufacturers Grade: IC520M, Squared Shape, Material Grade: K, M, P
Invoice description:
Sdmt 32ad-n Ic520m
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5600124
$11.59 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, Single Sided, Series: ISCARMILL, SDMT Insert, 0903 Insert, Squared, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 9.52 mm Width, 9.52 mm Length, N Chipbreaker, 45 deg Lead Angle, Manufacturers Grade: IC520M, ANSI Code: SDMT 32AD-N IC520M, ISO Code: SDMT 0903AD-N IC520M, Neutral Hand, Carbide, CVD-TiCN Coated, Material Grade: K, M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron Material Application
Specifications
ApplicationChamfering and Bottom Deburring, Countersinking, Slanted Shoulder and Chamfer
ANSI CodeSDMT 32AD-N IC520M
ChipbreakerN
FinishCVD-TiCN Coated
Hand of InsertNeutral
Inscribed Circle9.52 mm
Insert Size0903
Insert StyleSDMT
ISO CodeSDMT 0903AD-N IC520M
Lead Angle45 deg
Length9.52 mm
Manufacturers GradeIC520M
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and Cast Iron
Material GradeK, M, P
SeriesISCARMILL
ShapeSquared
Thickness3.18 mm
TypeSingle Sided
Width9.52 mm
Additional Information
Country of OriginIL
