GARR GARR 20340

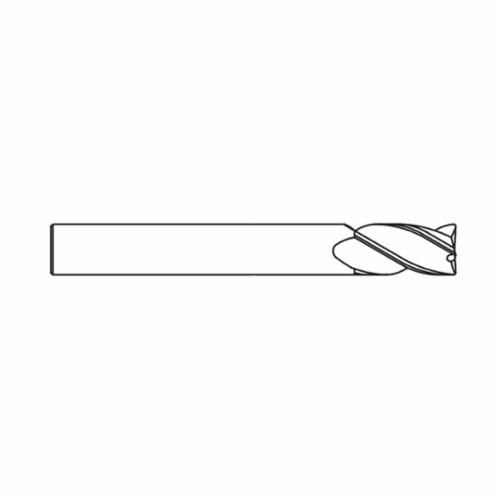

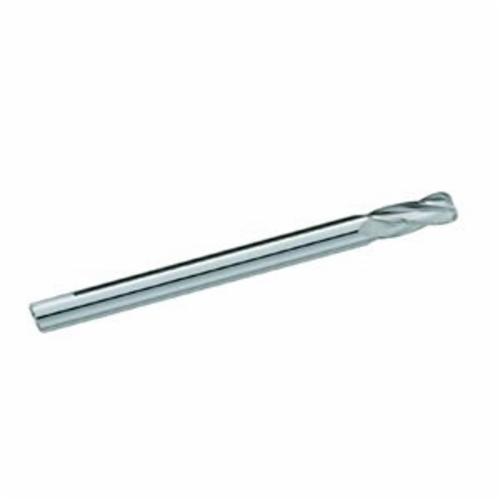

GARR 20340 630R Center Cutting Extra Length Single End Square End Mill, 1/4 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 4 in OAL, Uncoated

UNSPSC: 23242511
Manufacturer PN: 20340
$40.66 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Extra Length Single End Square End, Series: 630R, 1/4 in Diameter Cutter, 4 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, 3 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Extended reach
  • For stronger corners and part radius
  • Can be modified with a neck
  • Extremely versatile

Specifications

Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length4 in
Series630R
Shank Diameter1/4 in
Shank Length3 in
Shank TypeStraight
TypeCenter Cutting Extra Length Single End Square End
