Iscar ISCAR 5506627

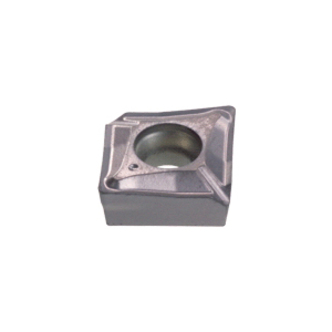

Iscar 5506627 MULTIFUNCTION TOOLS Milling Insert, XCMT Insert, 080304 Insert, Carbide, Manufacturers Grade: IC908, Squared Shape, Material Grade: H, K, M, P, S
Invoice description:
Xcmt 080304-mf Ic908
Factory Order

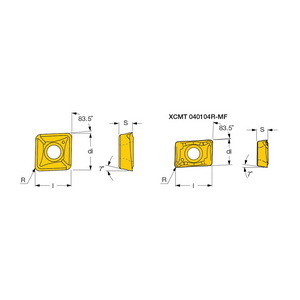

Iscar Milling Insert, Series: MULTIFUNCTION TOOLS, XCMT Insert, 080304 Insert, Squared, 8.4 mm Inscribed Circle, 3.18 mm Thickness, 8.4 mm Width, 8.4 mm Length, MF Chipbreaker, 0.4 mm Corner Radius, 7 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: XCMT 080304-MF IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- Inserts for DR-MF multifunction tools
- 2 cutting edges for hard materials and interrupted cut
- Low cutting forces due to high cutting edges and positive angles
Specifications
ApplicationHole Making Applications
ChipbreakerMF
Corner Radius0.4 mm
FinishPVD-TiAlN Coated
Inscribed Circle8.4 mm
Insert Size080304
Insert StyleXCMT
ISO CodeXCMT 080304-MF IC908
Lead Angle7 deg
Length8.4 mm
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesMULTIFUNCTION TOOLS
ShapeSquared
Thickness3.18 mm
Width8.4 mm
