Irwin IRW 63714

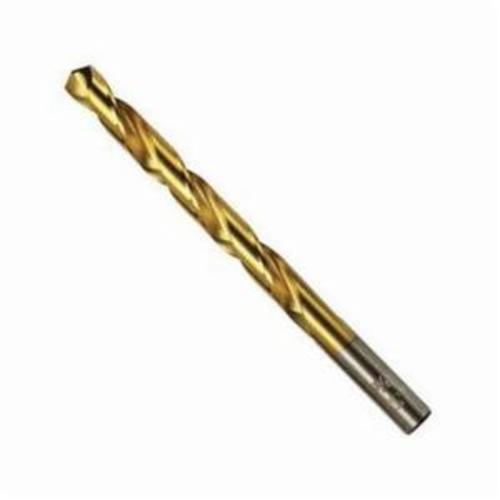

Irwin 63714 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 135 deg Point, HSS, TiN Coated
Invoice description:
7/32" Titanium 135-jobb R Length-bulk
UPC: 024721637147
UNSPSC:
23241606
Manufacturer PN: 63714
$4.72 EA
Factory OrderEstimated to ship in 14 days
Irwin Jobber Length Drill Bit, Heavy Duty, Series: 637, Imperial, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 3-3/4 in Overall Length, 2-1/2 in Cutting Depth, 2 Flutes, Spiral Flute, 2-1/2 in Flute Length, 7/32 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Drywall, Plastic and Wood
Features
- Titanium nitride coating extends the life of the bit, last up to six times longer than standard high speed steel drill bits
- Heavy duty web design provides extreme rigidity when drilling in metal applications
- Shorter cutting lips reduce torque when drilling in high tensile strength materials
- 135 deg split point reduces feed pressure for easier penetration without work hardening
- Repetitive metal drilling with portable drills, stationary drill press
Specifications
ApplicationFor general purpose applications
Applicable MaterialsAluminum, Brass, Copper, Drywall, Plastic and Wood
Cutting Depth2-1/2 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.2188 in
Drill Size - Fraction7/32 in
FinishTiN Coated
Flute Length2-1/2 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length3-3/4 in
Point Angle135 deg
Point TypeSplit
Series637
Shank Size7/32 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeHeavy Duty
Additional Information
WarrantyLimited
Country of OriginCN
