GARR GARR 12014

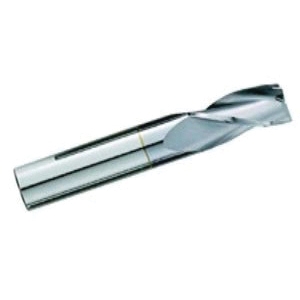

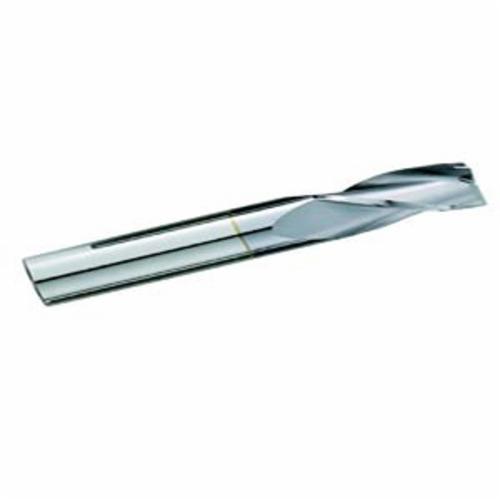

GARR 12014 223MC Center Cutting Square End Standard Length End Mill, 1/32 in Dia Cutter, 3/32 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated
Invoice description:
Em 1/32x3/32locx1/8x 1-1/2 3fl Ticn
In stock
(1)
GARR End Mill, Center Cutting Square End Standard Length, Series: 223MC, 1/32 in Diameter Cutter, 1-1/2 in Overall Length, 3/32 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-13/32 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- Up to 25% faster than uncoated
- For improved lubricity and abrasion resistance
- Extremely versatile
Specifications
Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length1-1/2 in
Series223MC
Shank Diameter1/8 in
Shank Length1-13/32 in
TypeCenter Cutting Square End Standard Length
Additional Information
Country of OriginUS
