Fullerton FULLT 38097

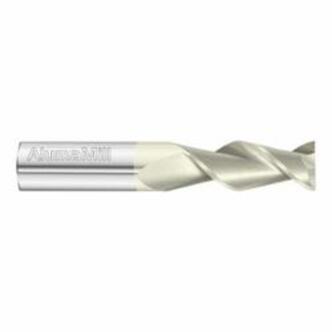

Fullerton AlumaMill 38097 3825 Center Cutting Single End Standard Length Square End End Mill, 1/4 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, FC19 Coated

Invoice description: E/m 1/4x1 Loc X1/4x2-1/2 2fl Fc19

UNSPSC: 23242511
Manufacturer PN: 38097
$46.26 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton AlumaMill End Mill, Center Cutting Single End Standard Length Square End, Series: 3825, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, FC19 Coated

  • Features

  • h6 shank diameter tolerance
  • +0.00 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance

Specifications

Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishFC19 Coated
Flute TypeSpiral
Helix Angle45 deg
ISO Code9001:2008
Length of Cut1 in
MaterialDura Carb
Number of Flutes2
Overall Length2-1/2 in
Series3825
Shank Diameter1/4 in
TypeCenter Cutting Single End Standard Length Square End

Additional Information

Country of OriginUS
