GARR GARR 10507

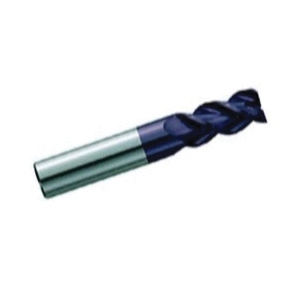

GARR 10507 853MA Center Cutting High Performance Square End Mill, 5 mm Dia Cutter, 8 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 50 mm OAL, AlTiN Coated
Invoice description:
Em 5x8locx6x50mm 3fl Altin Hp
Factory Order
GARR Square End Mill, Center Cutting High Performance, Series: 853MA, 5 mm Cutter Dia, 50 mm Overall Length, 8 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 50 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN Coated
Features
- High performance milling in aluminum and stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Slots aluminum at an axial depth of 25% of diameter
- Up to 40% faster than uncoated
- Sharp corners
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter5 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle50 deg
Length of Cut8 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes3
Overall Length50 mm
Series853MA
Shank Diameter6 mm
TypeCenter Cutting High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
