Fullerton FULLT 33013

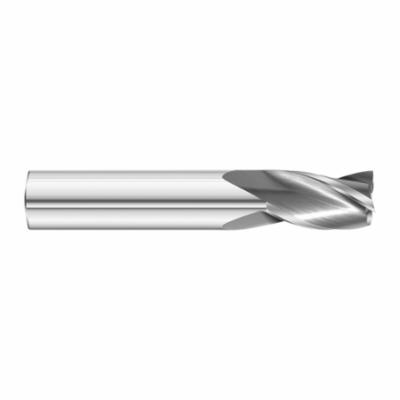

Fullerton 33013 3300 Center Cutting Single End Standard Length Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

Invoice description: Em 1/4x3/4locx1/4x2-1/2 3fl N/c

UNSPSC: 23242511
Manufacturer PN: 33013
$21.48 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton End Mill, Center Cutting Single End Standard Length Square End, Series: 3300, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 3 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, Uncoated

  • Features

  • h6 shank diameter tolerance
  • +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance

Specifications

ApplicationGeneral Purpose
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
ISO Code9001:2008
Length of Cut3/4 in
MaterialDura Carb
Number of Flutes3
Overall Length2-1/2 in
Series3300
Shank Diameter1/4 in
TypeCenter Cutting Single End Standard Length Square End

Additional Information

Country of OriginUS
