Fullerton FULLT 32497

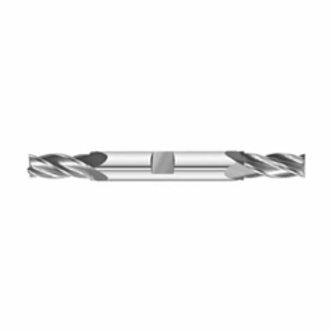

Fullerton 32497 3200 Center Cutting Double End Standard Length Square End End Mill, 5/16 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Uncoated

Invoice description: Em 5/16x3/4locx3/8x3-1/2 4fl N/c Dbl

UNSPSC: 23242511
Manufacturer PN: 32497
$87.02 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton End Mill, Center Cutting Double End Standard Length Square End, Series: 3200, 5/16 in Diameter Cutter, 3-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, Uncoated

  • Features

  • h6 shank diameter tolerance
  • +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance

Specifications

Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
ISO Code9001:2008
Length of Cut3/4 in
MaterialDura Carb
Number of Flutes4
Overall Length3-1/2 in
Series3200
Shank Diameter3/8 in
TypeCenter Cutting Double End Standard Length Square End

Additional Information

Country of OriginUS
