Fullerton FULLT 30923

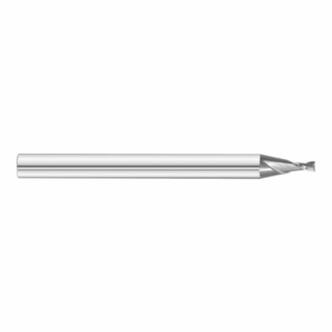

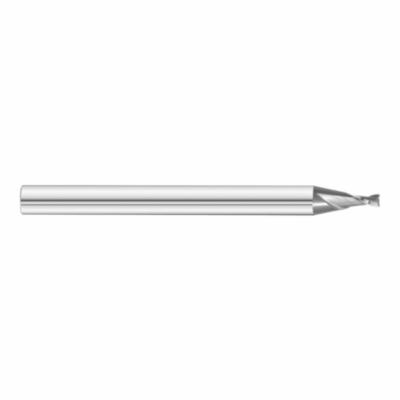

Fullerton Sub-Miniature 30923 3215SM Center Cutting Single End Square End End Mill, 0.04 in Dia Cutter, 0.12 in Length of Cut, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Invoice description: Cutting Flute 0.0400 Dia 2fl

UNSPSC: 23242511
Manufacturer PN: 30923
$15.08 EA
Factory Order
Estimated to ship in 14 days
QTY:


Fullerton Sub-Miniature End Mill, Center Cutting Single End Square End, Series: 3215SM, 0.04 in Diameter Cutter, 1-1/2 in Overall Length, 0.12 in Length of Cut, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb II, Uncoated

  • Features

  • Special sub-miniature design
  • Dura Carb II for enhanced shock resistance
  • H6 shank diameter tolerance
  • +/-0.0005 in/ +/-0.02 mm cutter diameter tolerance

Specifications

Cutter Diameter0.04 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
ISO Code9001:2008
Length of Cut0.12 in
MaterialDura Carb II
Overall Length1-1/2 in
Series3215SM
Shank Diameter1/8 in
TypeCenter Cutting Single End Square End

Additional Information

Country of OriginUS
